SPECIFICATIONS

Adjustable Temp. Range: 46℉-95℉/8℃-35℃

BTU: 215-269ft²/20-25 m²

Brand Name: Sunster

Car Air Heater Type: Heating&Ventilation mode

Certification: RoHS,FCC,CE

Control Method: LCD+Remote Control+Bluetooth

Exhaust Pipe Size(L x W): 59 x 2.5 cm/23.2 x 0.98 in

Fuel: Diesel

Fuel Consumption: 0.16-0.45 (L/H)

Fuel Type: Diesel

Heater Power: 8KW

Hign-concerned Chemical: None

Inlet Pipe Size (L x W): 50 x 2.5 cm/19.7 x 0.98 in

Item Height: 10.8

Item Length: 14.9

Item Type: Heating & Fans

Item Weight: 10

Item Width: 10

Material: PA

Origin: Mainland China

Outlet Pipe Size: 7.5cm

Remote Control Distance: 98 ft/30 m

Special Feature 1: Bluetooth APP Function

Special Feature 2: Automatic Start & Stop(constant temperature)

Special Feature 3: Turbo Heat Mode

Special Feature 4: Ventiation Function

Special Feature 5: Display Altitude

Special Feature 6: Timer Switch

Switch Type: LCD Switch

Tank Capacity: 5L/1.3 gal

working voltage: DC12V or DC24V or AC110-240V

Product description

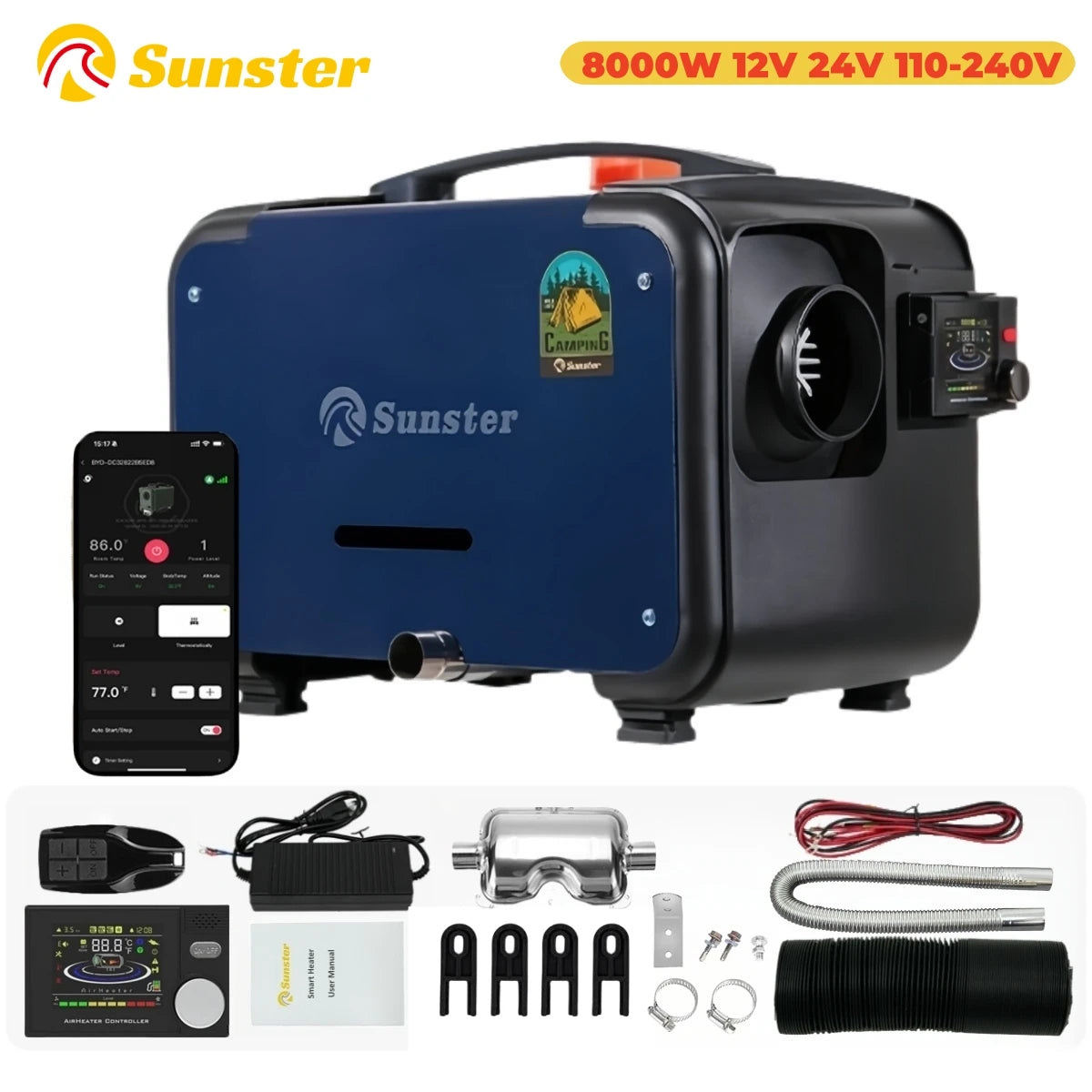

Product Name: Sunster Diesel Air Heater

Heating power: 8KW

Type of fuel: diesel

Car Air Heater Type：Heating&Ventilation mode

working voltage: DC12V or DC24V AC 110-240V

Startup Current:13A

Rated Current:3A

Adjustable Temperature Range: 46℉-95℉/8℃-35℃

Tank capacity: 5L/1,3 gal

Fuel consumption: 0.16-0.45 (l/h)

Operating temperature: -104℉~+176℉/-40°C~+80°C

Exhaust pipe size：25mm

Size of outlet pipe :76mm

Size of inlet pipe :25mm

A2302B switch

Operation method ------------1 button，1 knob

Time setting ------------yes

Automatic start and stop ------------yes

Bluetooth APP function ------------yes

Timer switch ------------ yes

Ventilation Function ------------yes

Display Altitude ------------yes

Turbo Heat Mode ------------yes

Display method ------------ Digital panel

Punp oil volune setting ------------Automatic pump oil

Remote control code ------------ yes

Query machine status ------------yes

Temperature scale switch ------------ ℉/℃ default ℉

Fault display ------------ 8 fault codes

Language selection (voice) ------------ German/English/Russian/close

Special feature :

Ventilation mode: The device includes a ventilation feature, which allows air to circulate without using the heating function. This option is especially useful on hot days and also helps prevent moisture build-up. The property is perfect for motorhomes and caravans.

Start & Stop thermostat: The heater has a smart thermostat that automatically turns the heater off when it reaches the set temperature. It then activates itself when the temperature drops, ensuring constant heat and energy efficiency.

2025 Upgraded Version

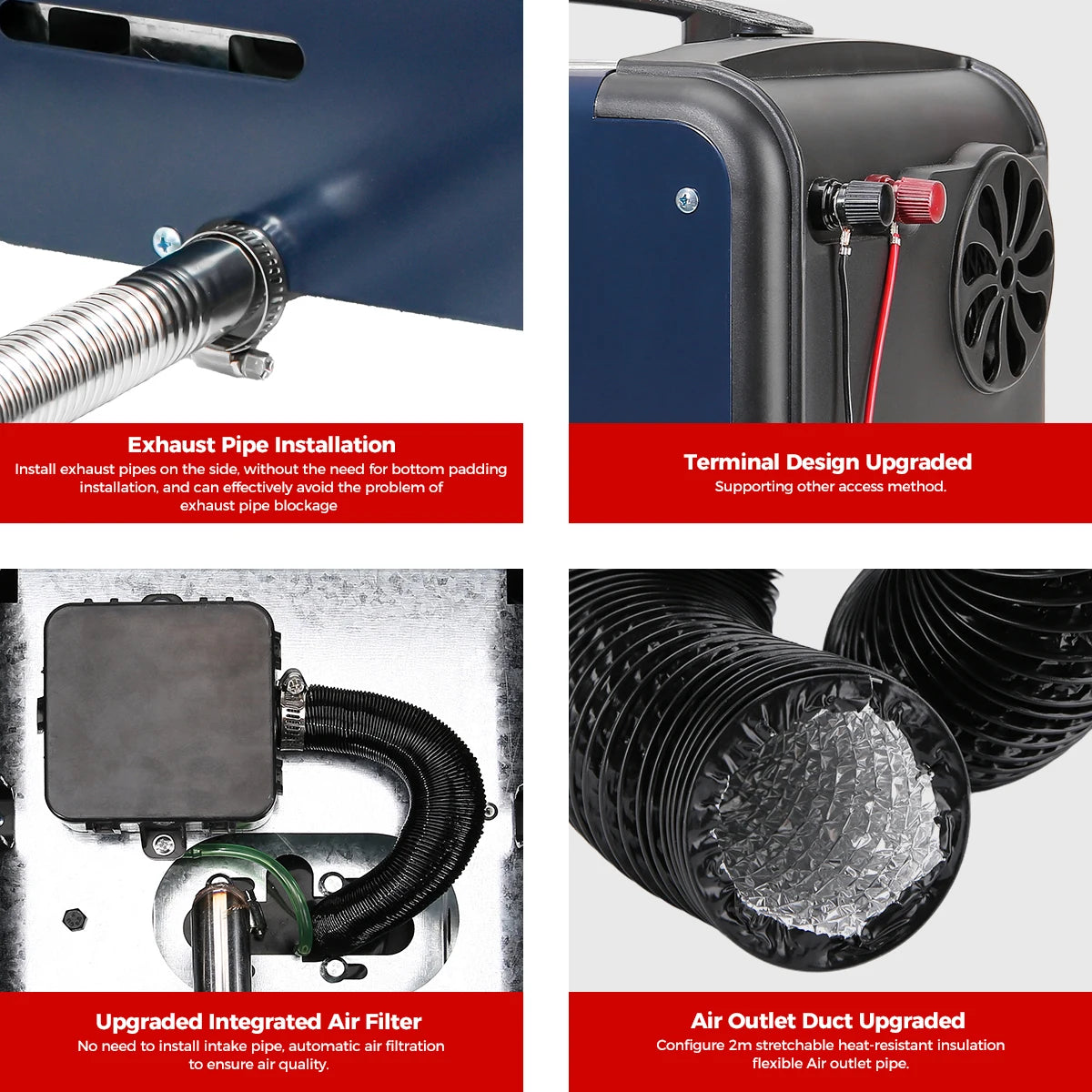

1、Upgraded integrated air filter: no need to install intake pipe, automatic air filtration to ensure air quality.

2、Air outlet duct Upgraded: Configure 2m stretchable heat-resistant insulation flexible Air outlet pipe.

3、Terminal Design Upgraded ：Supporting other access method.

4、Exhaust pipe installation upgraded：Install exhaust pipes on the side, without the need for bottom padding installation, and can effectively avoid the problem of exhaust pipe blockage

5、Fuel pump upgraded -------------Configure ultra quiet oil pump to reduce operating noise by 50%

Universal Dual Power Input (12V/24V DC & 110V-240V AC): Sunster diesel heater compact automatically switches between vehicle and household power, allowing you to use it both on the road or at home. Perfect for those looking for versatile heating solutions across various settings.

Smart Bluetooth control：Smart APP Control,Gain complete command with the smart app, which offers precise control over temperature, timers, power levels, altitude mode, constant temperature, and Ventiation mode settings. The Sunster diesel heater experience ultimate convenience and peace of mind.

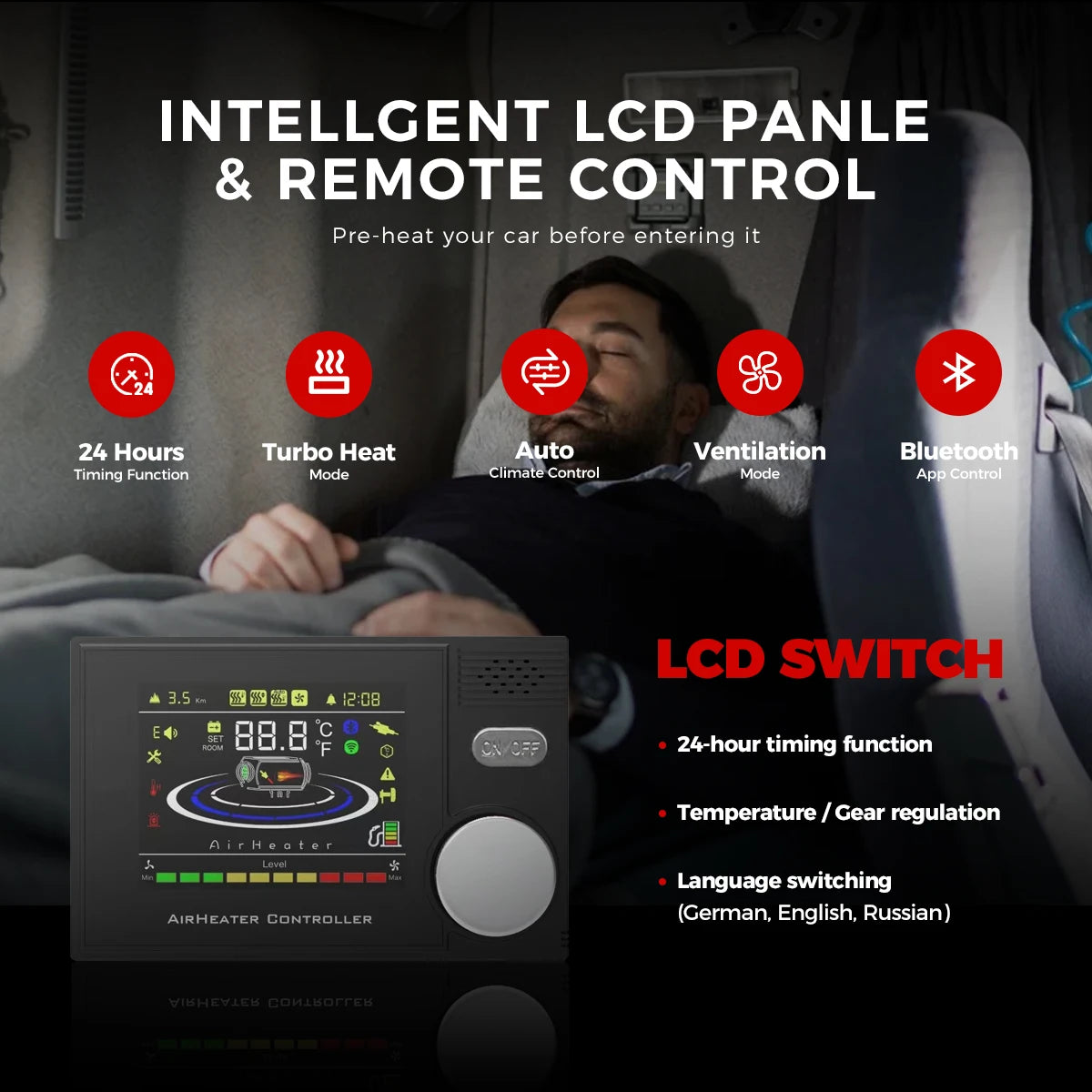

Upgraded Smart Panel: The switch can provide constant temperature control (Automatic Start&Stop), timing function, ventilation mode, turbo heating mode, etc., to meet your various heating needs.

Three control methods Our improved diesel heater is equipped with Bluetooth control, you can control the heater to pre-heat or adjust the temperature at a distance of 98 feet/30 meters, just download the app. It is also equipped with a remote control and LCD display so you can choose the control that is right for you.Temperature control range is 46 °F-96.8 °F/8 °C-36 °C to meet different needs.

Smart motherboard: The smart motherboard helps monitor the entire working process and provides precise combustion control. Provides protection against short circuit, overvoltage and overload. You can be sure that our product will be used by you.

Incandescent candle: The incandescent candle we use heats up quickly, ignites easily, has great compatibility.

Fan rotor: Before delivery subjected to rigorous testing to perform dynamic balancing experiment. The quality standard shall be maintained within ±0.05g.

Engine assembly: 4000 rpm/min, the motherboard is precisely controlled in ± 5 rpm range.

Temperature sensor: High quality temperature sensor ensures minimum temperature measurement error

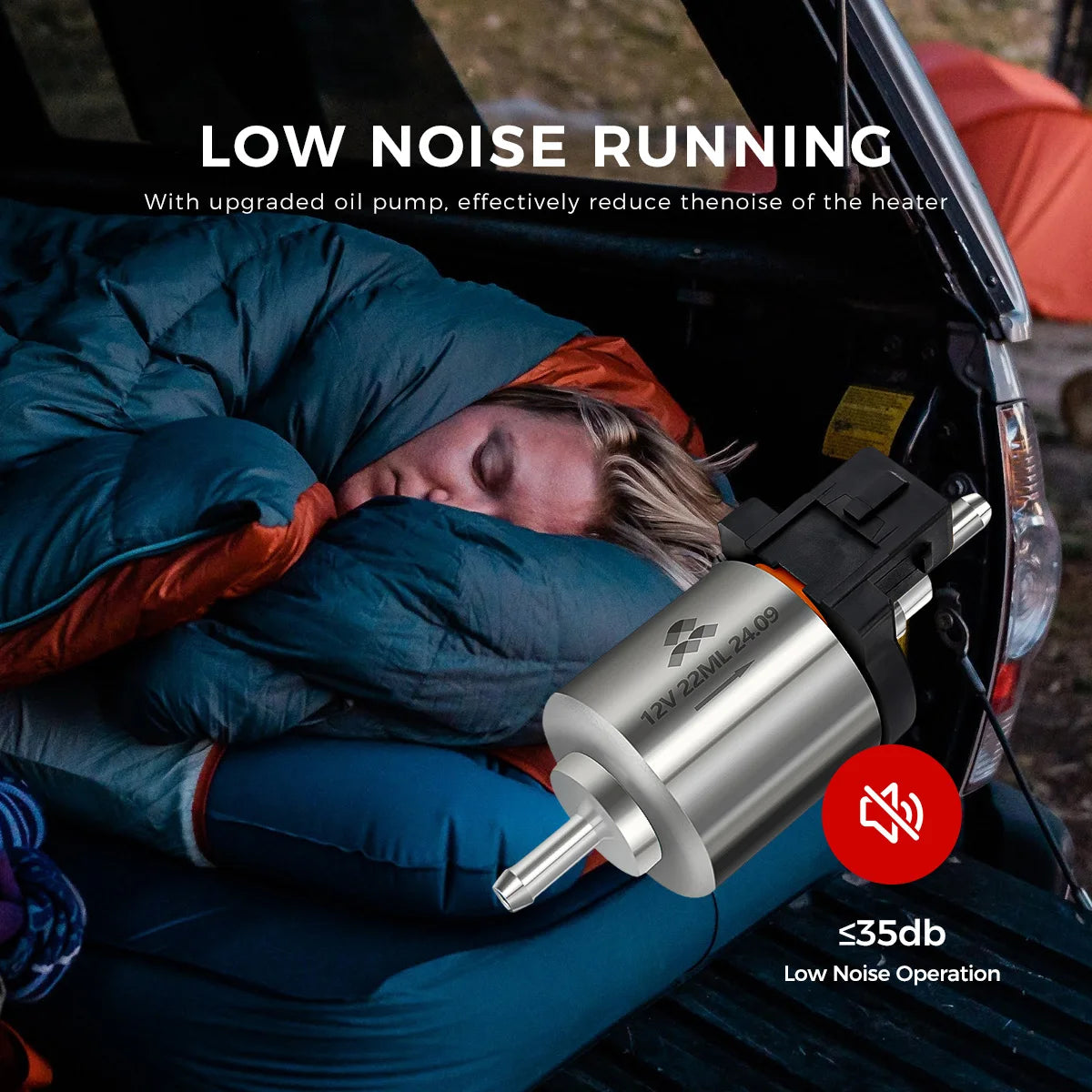

Upgraded fuel pump - equipped with ultra quiet fuel pump, reducing operating noise by 50%: This diesel heater is designed with high-quality muffler and fuel pump to minimize noise, with operating noise ≤ 35dB.

Low energy consumption and high output: Sunster diesel heater consumes less than 1 gallon per night, reducing fuel consumption to 0.16-0.45 L/h. Equipped with a 5 L/1.3 gallon large capacity fuel tank, it can provide up to 8 hours of continuous heating

Multiple Protection: To provide you with a more reassuring product, the product has passed high-standard safety certification, featuring built-in protection against overheating (≥536℉/280℃), short circuit, overcurrent, overvoltage, and reverse connection,

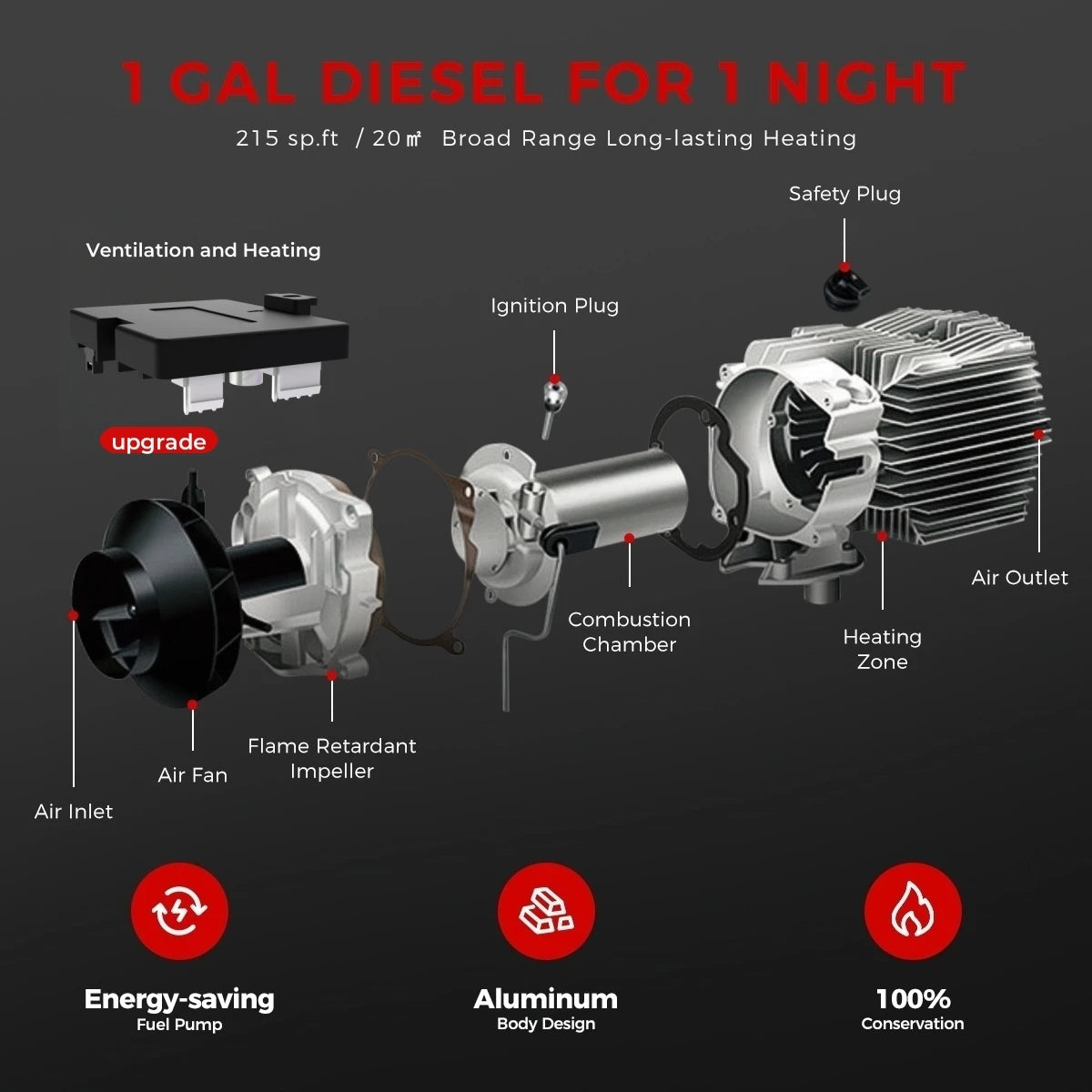

Robust Aluminum Structure:The combustion chamber, base and heat dissipating scale are made of sandblasted aluminum. This diesel-powered stationary heater has an integral design, is characterized by uniform heat dissipation and high temperature resistance.

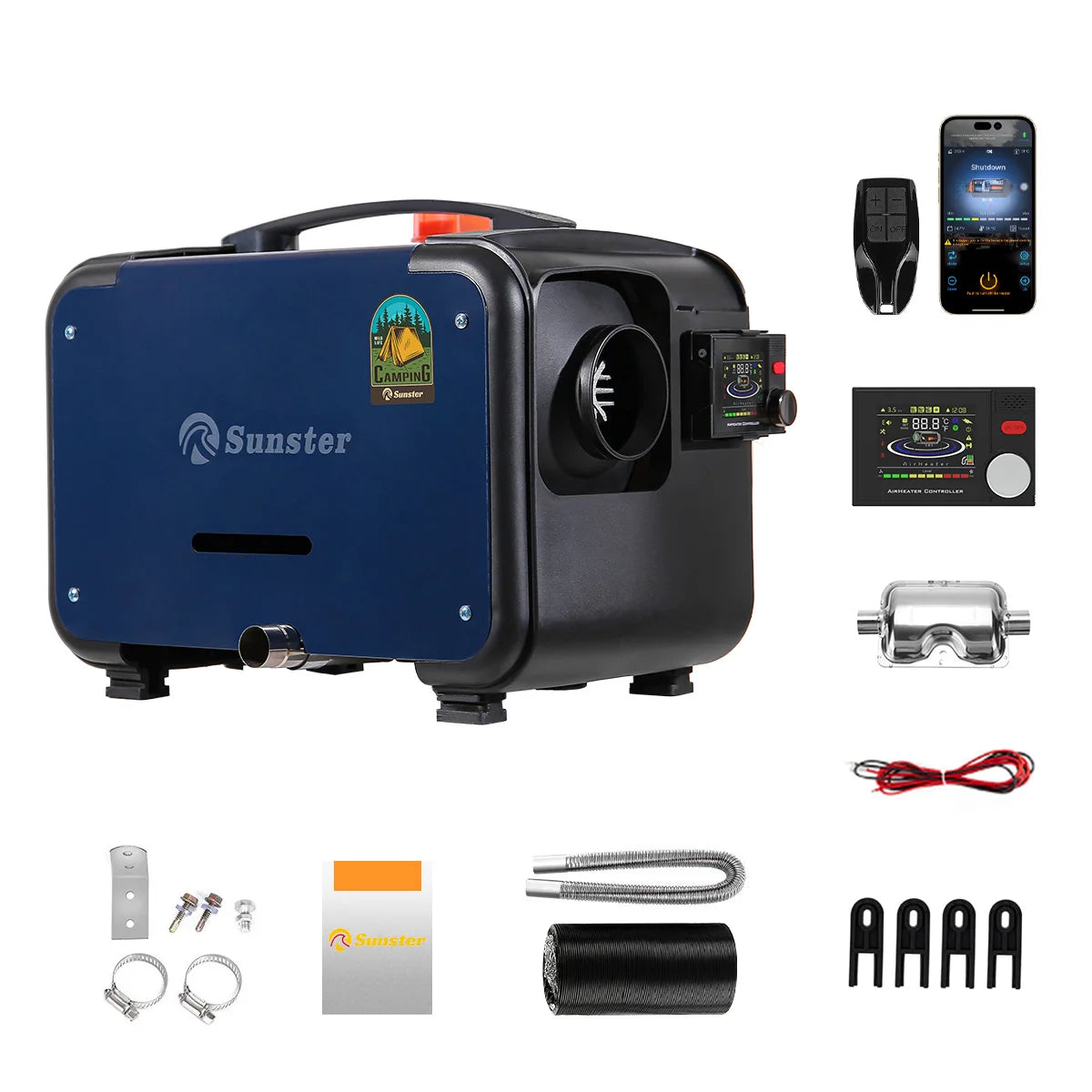

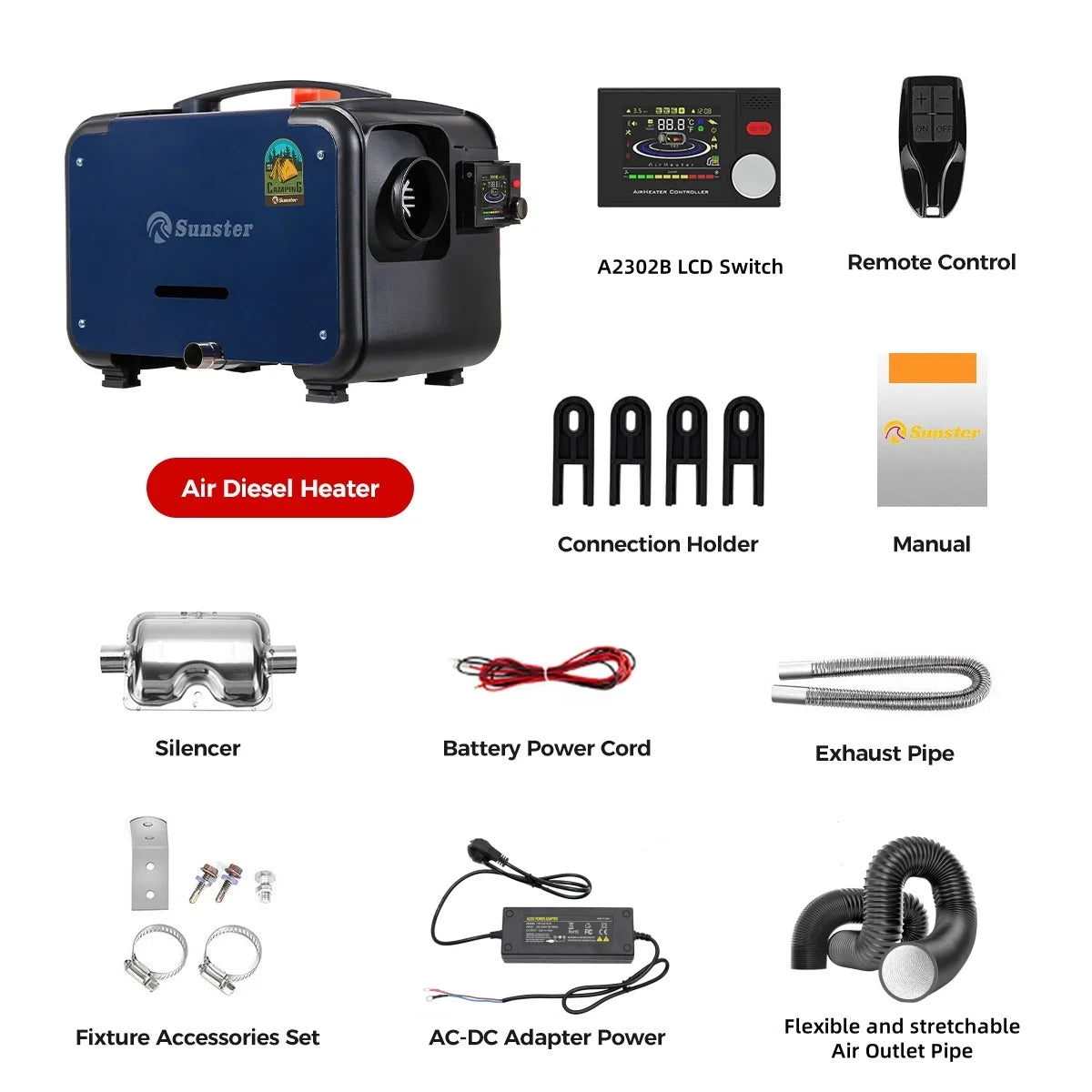

【Package Accessories List 】

1 x All-in-one Diesel Heater (with LCD)/1 x AC110-240V power adapter （EU/UK/US PLUG）/1 x Remote Control/1 x Silencer/ 1 x Air Filter/1 x Inlet Pipe/ 1 x Outlet Pipe/1 x Exhaust Pipe/Air outlet Pipe/ 1 x crew & fixture accessories set /1 x User Manual
